ce sertipikasyon at bagong kondisyon plasma cutting machine para sa metal sheet
Mabilis na Mga Detalye


Kondisyon: Bago
Boltahe: 220V / 380V
Rated Power: 1000W
Dimensyon (L * W * H): 3880 * 2150 * 2000mm
Timbang: 1500kg
Sertipikasyon: CE ISO
Garantiyang: 2 Taon
Ibinigay ang Serbisyo pagkatapos ng benta: Magagamit ang mga inhinyero sa makinarya ng serbisyo sa ibang bansa

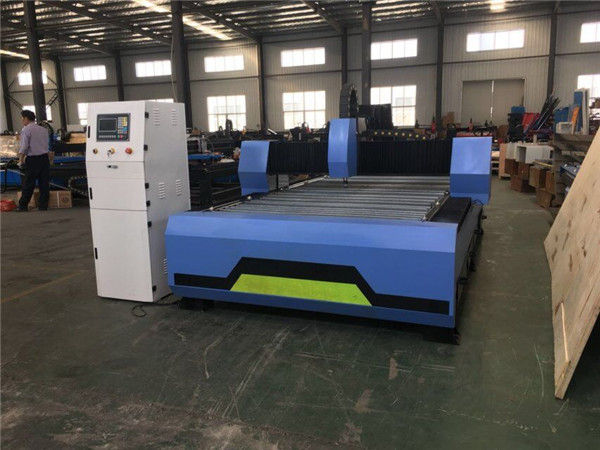

Product name: ACUT-1530 plasma cutting machine
Application: cutting metal
Motor: stepper o servo
Working area: 1500*3000*200mm
Software: Artcam
Kontrol ng system: Simulan ang sistema ng control
Color: Purple&white or customized
plasma power: 63A /100A/120A/200A
flame cutting head: optional
Pagputol ng materyal: Metal hindi kinakalawang na asero Carbon Steel Aluminum



Paglalarawan ng Produkto


Apply to industry and materials
Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boatbuilding, electrical accessories, board cutting

Functional Characteristics

Fast cutting speed, high precision and low cost.
2. with firm and reasonable structure. The machine is easy to operate and durable for use.
3. The cutting incision is thin and tidily and can avoid the second processing.
4. High configurator CNC system, auto arc-striking and stable performance.
5. Together with other advertising equipment’s, they form an advertisement producing line which completely solve the problem of traditional manual mode.
6. It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision. (USA power is optional).
7. It supports the standard G code router files that made by software’s such as ARTCUT, CAXA, ARTCAM and TYPE3. Converted by certain software, it can also read DXF file that out of AUTOCAD, The control system, adopting U flash disk to change the processing files

Performance Index


Machine Model

ACUT-1325 Plasma

ACUT-1530

Nagtatrabaho lugar

1300 × 2500mm

1500 * 3000mm

Processing thickness

0.5-50mm

Current Plasma

63A, 100A, 120A, 200A

Pagputol ng katumpakan

± 0.5mm

Orientation precision

0.05mm

Ang bilis ng paggupit

0-8m / min

Travelling speed

0-15m/min

Kapangyarihan

8.5KW

Boltahe ng pag-input

380V

Daluyan ng lakas

50HZ

The mode of file transfer

USB(interface)

Form ng pagtatrabaho

untouched arc striking



Industrial Pagputol ng Plasma


Apply to industry and materials
it is used to cut iron plate, steel plate, aluminum plate, titanium plate, copper plate and other metal plate

Functional Characteristics

If the machine adopts American Hyperthermia power supply, START control system and auto torch-height adjuster. It can cut metal of 3-50mm thickness.

Packaging & Shipping


1. Standard plywood case, its compressive strength and bearing quality is better.

2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.

3. when importing, the plywood case is with fumigation-free, the procedure is simple.

4. Delivery Detail: within 7-14 days after received your payment
